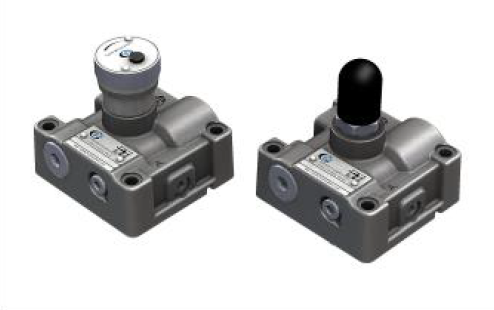

Pressure Compensated Flow Control Valve
Pressure-compensated flow control from port A to port B, with an optional reverse-free check valve. Differential-piston, sharp-edge-orifice construction; seven rotations of the hand knob over the controlling range for easy setting.
Product Information
| Construction | Differential piston with sharp-edge orifice |
|---|---|
| Interface | ISO 6263-06-05 |
| Flow controlling capacity | 0.25–4, 0.5–8, 1–16, 2–32 or 3–40 l/min |
| Flow controlling accuracy | ±3% (at 40°C, VG46 oil) |
| Operating pressure | 315 bar |
| Mass approx. | 2.4 kg |
