Hydraulic Ball Valves

2, 3 and 4-way high pressure ball valves, split flange and manifold mounted versions.

8 products

Asian Hydraulic
High pressure ball valves

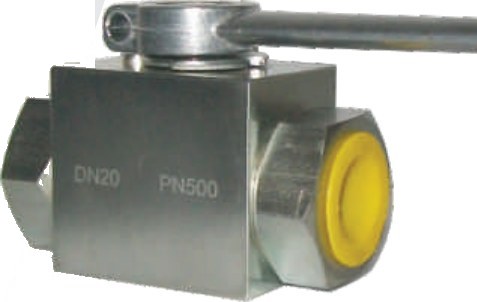

High Pressure Ball Valve — KHB2 (2-Way, Standard)
KHB2
2-way high pressure block-body ball valve in carbon steel, PN up to 500 bar, with BSP, NPT and SAE threaded connections.
Enquire
Asian Hydraulic
High pressure ball valves

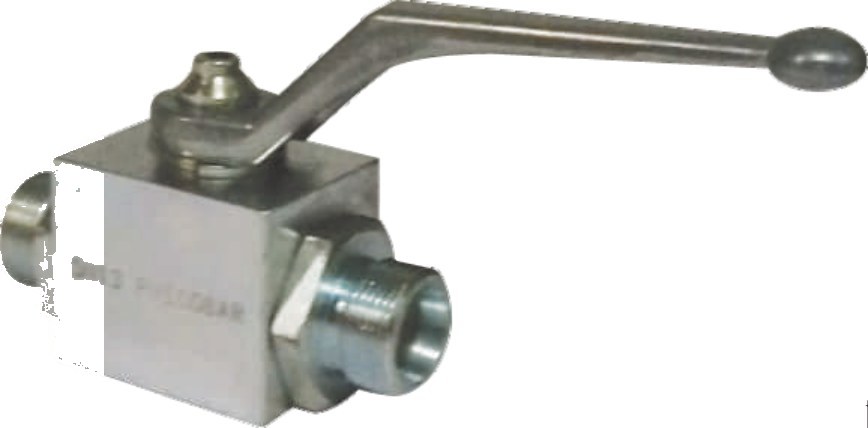

High Pressure Ball Valve — KHB2 Light & Heavy Series (DIN 2353)
KHB2 L / KHB2 S
2-way carbon steel ball valve with DIN 2353 tube connections, in light (L) and heavy (S) series.
Enquire
Asian Hydraulic
High pressure ball valves

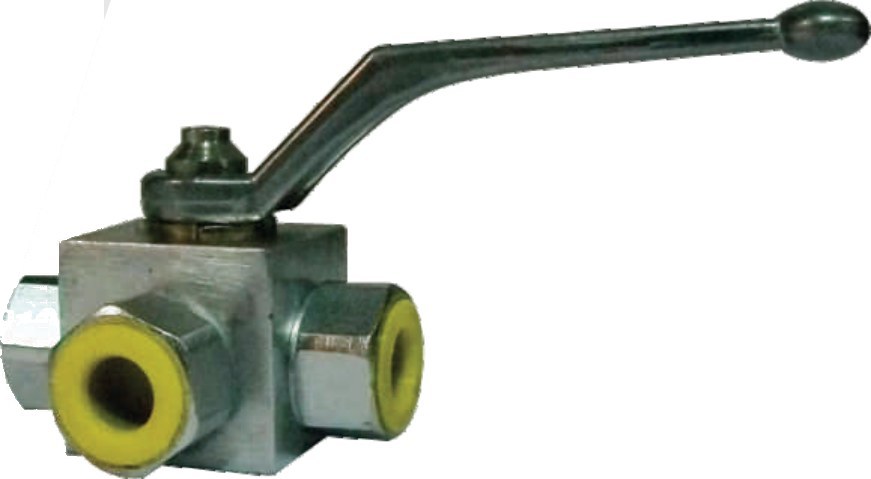

High Pressure Ball Valve — KH3 (3-Way, Standard)
KH3
3-way high pressure block-body ball valve in carbon steel with BSP, NPT and SAE connections.
Enquire
Asian Hydraulic
High pressure ball valves

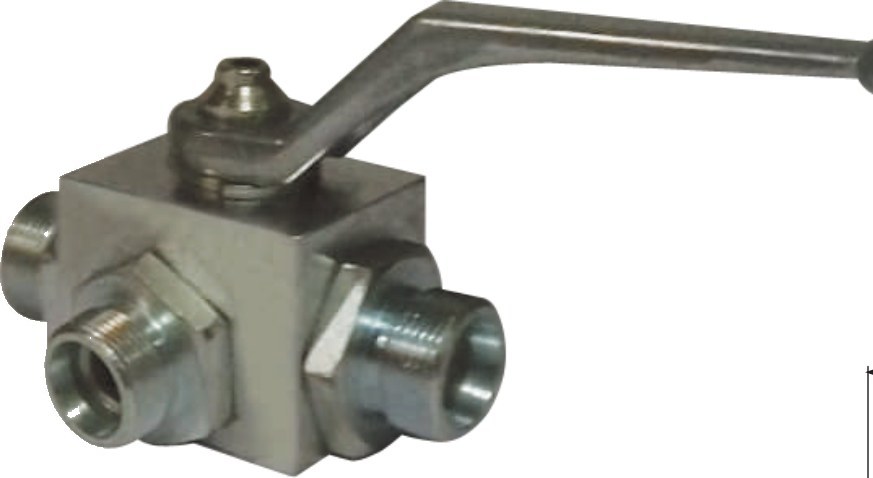

High Pressure Ball Valve — KH3 Light & Heavy Series (DIN 2353)
KH3 L / KH3 S
3-way carbon steel ball valve with DIN 2353 tube connections, in light and heavy series.
Enquire
Asian Hydraulic
High pressure ball valves

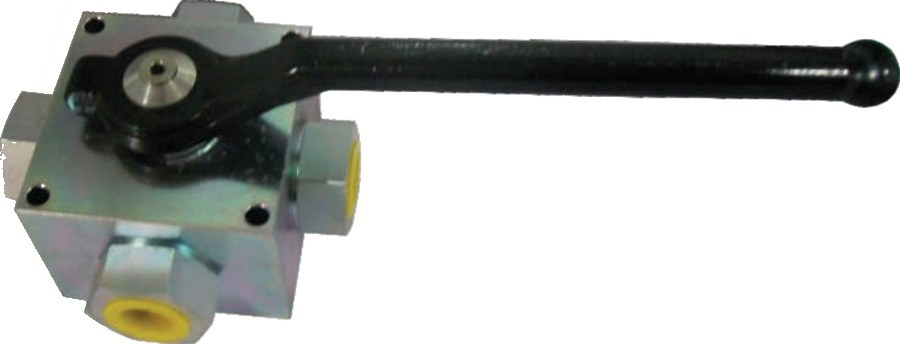

High Pressure Ball Valve — KH4 (4-Way)
KH4
4-way square-body high pressure ball valve with L, T and X ball drilling options.
Enquire
Asian Hydraulic
High pressure ball valves

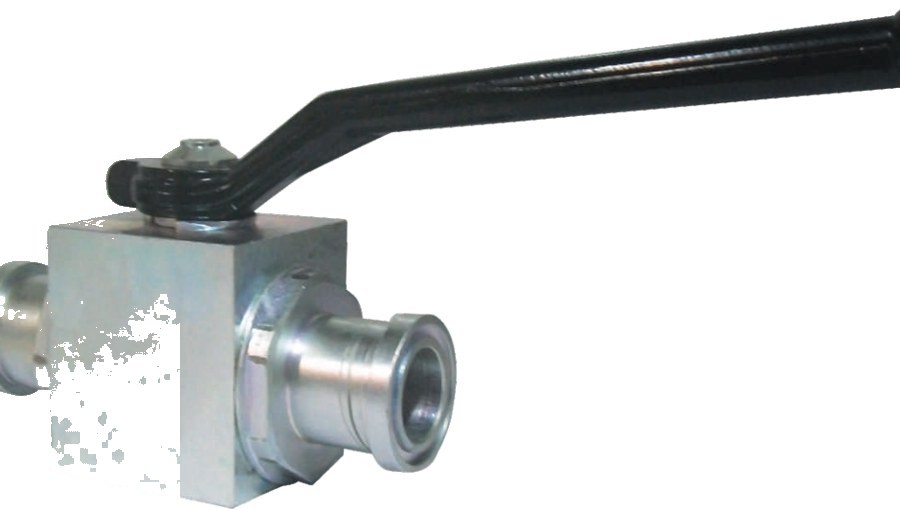

High Pressure Ball Valve with Split Flange — KHB2SF
KHB2SF
2-way ball valve with SAE J518 split flange connections (S3000 / S6000).
Enquire
Asian Hydraulic
Manifold mounted ball valves
Manifold Block Mounted High Pressure Ball Valve — KHP2
KHP2
2-way square-body ball valve for direct manifold block mounting, DN6 to DN50.
Enquire
Asian Hydraulic
Manifold mounted ball valves

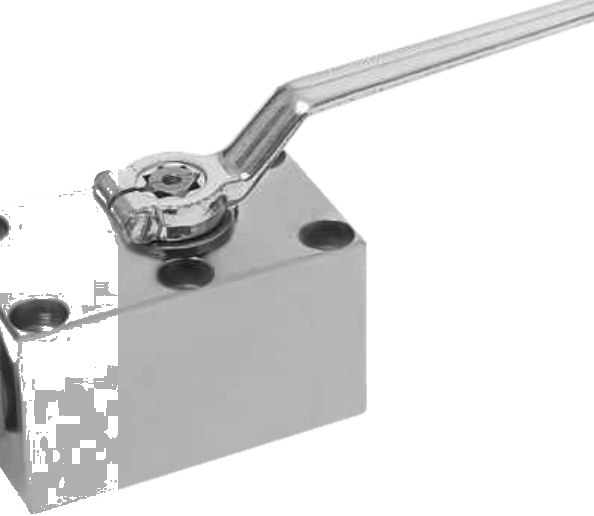

Manifold Block Mounted High Pressure Ball Valve — KHP3
KHP3
3-way square-body ball valve for direct manifold block mounting.
Enquire
