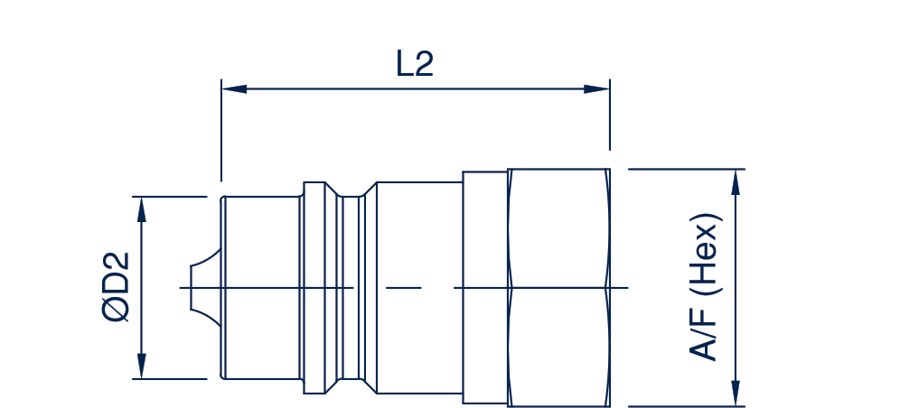

ISO A Quick Release Coupling — AH Series Male — image 1
Quick Release CouplingsISO A couplings

ISO A Quick Release Coupling — AH Series Male

Model / code
AH Series (-M)
Brand
Asian Hydraulic
Category
Quick Release Couplings

ISO 7241:2014 Series A male hydraulic quick release coupling (nipple), 1/4" to 2", BSPP and NPTF threads.

Western Hardware Mart, Kolkata supplies the Asian Hydraulic ISO A Quick Release Coupling — AH Series Male as part of our iso a couplings range. Available in 16 sizes or variants. Standard: ISO 7241:2014 Series A. Specifications include body sizes 1/4" to 2" (AH06 – AH50), construction Carbon steel with trivalent plating (zinc nickel available); also available in AISI 316 stainless steel and seals Nitrile (Viton available). Message us on WhatsApp or call +91 98746 36636 for price and availability.

  • StandardISO 7241:2014 Series A
  • Body sizes1/4" to 2" (AH06 – AH50)
  • ConstructionCarbon steel with trivalent plating (zinc nickel available); also available in AISI 316 stainless steel
  • SealsNitrile (Viton available)

Enquire about this product

Send us the product details and we’ll reply with availability and pricing.

Enquire on WhatsAppSend an Email
+91 98746 36636 Request a formal quote

Specifications

Standard
ISO 7241:2014 Series A
Body sizes
1/4" to 2" (AH06 – AH50)
Construction
Carbon steel with trivalent plating (zinc nickel available); also available in AISI 316 stainless steel
Seals
Nitrile (Viton available)
Operating temperature
Nitrile: -40 °C to 106 °C; Viton: -20 °C to 200 °C
Max working pressure (coupled)
400 bar (AH06) down to 170 bar (AH50)
Threads
BSPP / NPTF; SAE / metric available

Sizes & variants

Male part numbers

Body sizeThreadPart number
06 (1/4")1/4 BSPAH06-04G-M
06 (1/4")1/4 NPTFAH06-04N-M
10 (3/8")3/8 BSPPAH10-06G-M
10 (3/8")3/8 NPTFAH10-06N-M
12 (1/2")1/2 BSPPAH12-08G-M
12 (1/2")1/2 NPTFAH12-08N-M
19 (3/4")3/4 BSPPAH19-12G-M
19 (3/4")3/4 NPTFAH19-12N-M
25 (1")1 BSPPAH25-16G-M
25 (1")1 NPTFAH25-16N-M
32 (1-1/4")1-1/4 BSPPAH32-20G-M
32 (1-1/4")1-1/4 NPTFAH32-20N-M
40 (1-1/2")1-1/2 BSPPAH40-24G-M
40 (1-1/2")1-1/2 NPTFAH40-24N-M
50 (2")2 BSPPAH50-32G-M
50 (2")2 NPTFAH50-32N-M

Performance by body size

Body sizeMax working pressure (bar)Rated flow (l/min)
AH064003
AH1035023
AH1232045
AH19300106
AH25250189
AH32250288
AH40230379
AH50170757

Need a size that isn’t listed? Ask us — other configurations may be available on request.
