Clamps & magnet lifters
Permanent Magnet Lifter
MAGSL SeriesPermanent magnet lifter for lifting steel plates and blocks — no power required.

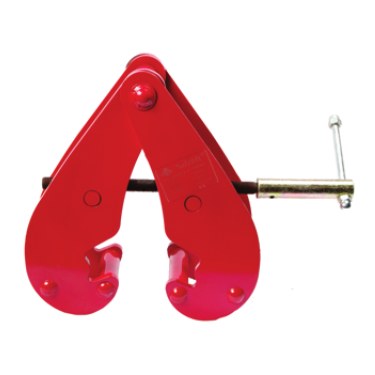

Beam Clamp
Adjustable beam clamp that provides a temporary anchor point on I-beams for hoists and pulley blocks.
Western Hardware Mart, Kolkata supplies the Beam Clamp (BEAMSL Series) as part of our clamps & magnet lifters range. Available in 5 sizes or variants (capacity 1–10 t, flange width a min–max 72–430 mm, weight 3.36–22.6 kg). Part numbers: BEAMSL01, BEAMSL02, BEAMSL03, BEAMSL05, BEAMSL10. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- Capacity1 – 10 t
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Capacity
- 1 – 10 t
Sizes & variants
| Capacity (t) | Item Code | Flange Width A Min–Max (mm) | Weight (kg) |
|---|---|---|---|
| 1 | BEAMSL01 | 72 – 175 | 3.36 |
| 2 | BEAMSL02 | 87.5 – 170 | 4.02 |
| 3 | BEAMSL03 | 95.5 – 300 | 9.3 |
| 5 | BEAMSL05 | 100 – 310 | 11.1 |
| 10 | BEAMSL10 | 145 – 430 | 22.6 |
Need a size that isn’t listed? Ask us — other configurations may be available on request.
