Hoists, Trolleys & Pullers Electric hoists

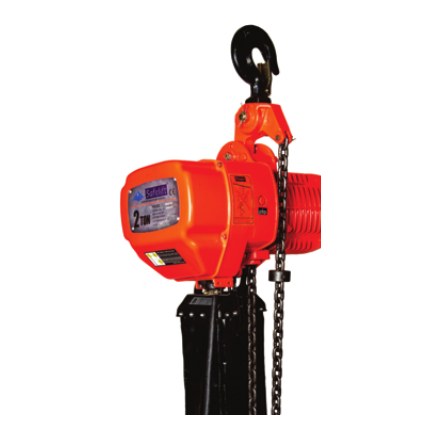

Electric Chain Hoist — Single Speed

Model / code: MHSL Series
Category: Hoists, Trolleys & Pullers

Single speed electric chain hoist, 0.5 to 10 tonnes, with 3-phase power supply and low-voltage pendant control.

Western Hardware Mart, Kolkata supplies the Electric Chain Hoist — Single Speed (MHSL Series) as part of our electric hoists range. Available in 7 sizes or variants (capacity 0.5–10 t, lifting speed 1.8–7.2 m/min, motor power 0.8–3 kW). Part numbers: MHSL0050S, MHSL010S, MHSL020S, MHSL030S, MHSL050S, MHSL750S, MHSL100S. Specifications include power supply 3P 220V – 690V, control voltage 24V / 36V / 48V and insulation grade F. Message us on WhatsApp or call +91 98746 36636 for price and availability.

Capacity range0.5 – 10 tonnes
Power supply3P 220V – 690V
Control voltage24V / 36V / 48V
Insulation gradeF

Enquire about this product

Send us the product details and we’ll reply with availability and pricing.

Enquire on WhatsApp

Send an Email

+91 98746 36636 Request a formal quote

Specifications

Capacity range: 0.5 – 10 tonnes
Power supply: 3P 220V – 690V
Control voltage: 24V / 36V / 48V
Insulation grade: F

Sizes & variants

Capacity (t)	Item Code	Lifting Speed (m/min)	Motor Power (kW)	No. of Chain	Load Chain	Net Weight (kg)
0.5	MHSL0050S	7.2	0.8	1	ϕ6.3	47
1	MHSL010S	6.6	1.5	1	ϕ7.1	61
2	MHSL020S	3.3	1.5	2	ϕ7.1	73
3	MHSL030S	5.4	3.0	1	ϕ11.2	122
5	MHSL050S	2.7	3.0	2	ϕ11.2	151
7.5	MHSL750S	1.8	3.0	3	ϕ11.2	176
10	MHSL100S	2.7	3.0 × 2	4	ϕ11.2	300
