Slings, Chains & Rigging Hardware Links, eye bolts & rigging hardware

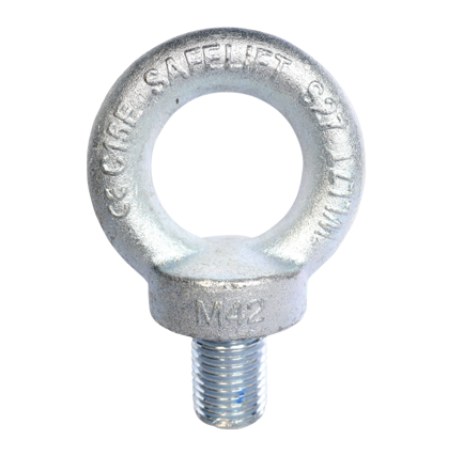

Eye Bolt DIN 580 — Galvanised

Model / code: EBSL Series
Category: Slings, Chains & Rigging Hardware

Forged carbon steel galvanised lifting eye bolt to DIN 580, M6 to M64.

Western Hardware Mart, Kolkata supplies the Eye Bolt DIN 580 — Galvanised (EBSL Series) as part of our links, eye bolts & rigging hardware range. Available in 12 sizes or variants (WLL 0° 0.07–16 t, WLL 90° 0.05–11 t, weight 0.05–12.2 kg). Part numbers: EBSL0806, EBSL0808, EBSL0810, EBSL0812, EBSL0816, EBSL0820, EBSL0824, EBSL0830, EBSL0836, EBSL0842 and 2 more. Standard: DIN 580. Specifications include thread size M6 – M64 and material Forged carbon steel, galvanised. Message us on WhatsApp or call +91 98746 36636 for price and availability.

Thread sizeM6 – M64
StandardDIN 580
MaterialForged carbon steel, galvanised

Enquire about this product

Send us the product details and we’ll reply with availability and pricing.

Enquire on WhatsApp

Send an Email

+91 98746 36636 Request a formal quote

Specifications

Thread size: M6 – M64
Standard: DIN 580
Material: Forged carbon steel, galvanised

Sizes & variants

Size	WLL 0° (t)	WLL 90° (t)	Item Code	Weight (kg)
M6	0.07	0.05	EBSL0806	0.05
M8	0.14	0.095	EBSL0808	0.06
M10	0.23	0.17	EBSL0810	0.1
M12	0.34	0.24	EBSL0812	0.18
M16	0.7	0.5	EBSL0816	0.29
M20	1.2	0.83	EBSL0820	0.46
M24	1.8	1.27	EBSL0824	0.83
M30	3.6	2.6	EBSL0830	1.58
M36	5.1	3.7	EBSL0836	2.67
M42	7	5	EBSL0842	4.35
M56	11.5	8.3	EBSL0856	8.68
M64	16	11	EBSL0864	12.2
