Solenoid operated valves
Solenoid Operated Directional Control Valve — 4DE10 (Size 10, D05)
4DE104/3 and 4/2-way wet-pin AC/DC solenoid directional control valve, size 10 (D05), 315 bar, 120 l/min.

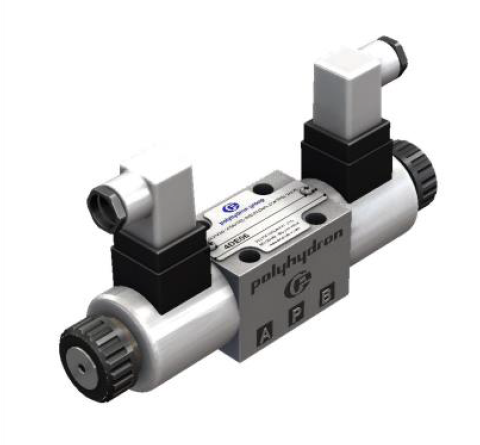

Solenoid Operated Directional Control Valve — 4DE06 (CETOP 3)
Direct solenoid operated spool directional valve, ISO 4401-03, with wet-pin DC solenoids and plug-in coils.
Western Hardware Mart, Kolkata supplies the Polyhydron Solenoid Operated Directional Control Valve — 4DE06 (CETOP 3) as part of our solenoid operated valves range. Specifications include interface ISO 4401-03-02, max. pressure P, A, B: 315 bar; T: 100 bar and voltage DC 12 V / 24 V; AC 110 V / 220 V 50 Hz. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- InterfaceISO 4401-03-02
- Max. pressureP, A, B: 315 bar; T: 100 bar
- VoltageDC 12 V / 24 V; AC 110 V / 220 V 50 Hz
- Power30 W
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Interface
- ISO 4401-03-02
- Max. pressure
- P, A, B: 315 bar; T: 100 bar
- Voltage
- DC 12 V / 24 V; AC 110 V / 220 V 50 Hz
- Power
- 30 W
- Switching time
- ON 40 ms / OFF 30 ms
- Protection
- IP65
- Mass
- 1.2 kg (single) / 1.8 kg (double solenoid)
- Hydraulic medium
- Mineral oil
- Viscosity range
- 10 cSt to 380 cSt
