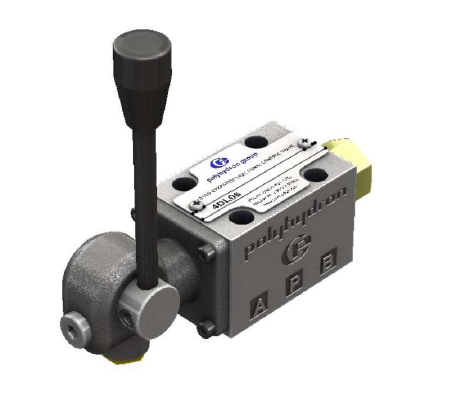

Lever Operated Directional Control Valve — 4DL06 (CETOP 3)
Hand-lever operated spool directional valve, ISO 4401-03, spring centred, spring offset or detented.
Western Hardware Mart, Kolkata supplies the Polyhydron Lever Operated Directional Control Valve — 4DL06 (CETOP 3) as part of our manual, lever, cam & rotary valves range. Specifications include interface ISO 4401-03-02, mounting Subplate body and max. pressure P, A, B: 315 bar; T: 100 bar. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- InterfaceISO 4401-03-02
- MountingSubplate body
- Max. pressureP, A, B: 315 bar; T: 100 bar
- Fluid temperature-20 °C to +70 °C
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Interface
- ISO 4401-03-02
- Mounting
- Subplate body
- Max. pressure
- P, A, B: 315 bar; T: 100 bar
- Fluid temperature
- -20 °C to +70 °C
- Mass
- 1.5 kg
- Hydraulic medium
- Mineral oil
- Viscosity range
- 10 cSt to 380 cSt
