Flow control valves

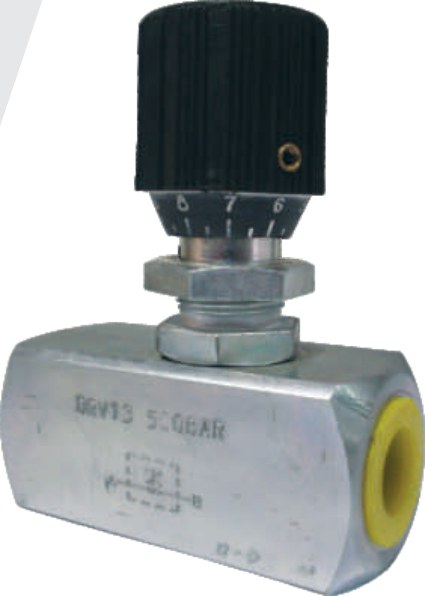

Flow Control Valve with Check Valve — DRV
DRVInline carbon steel flow control (throttle) valve with integrated check valve; panel-mount kit available.

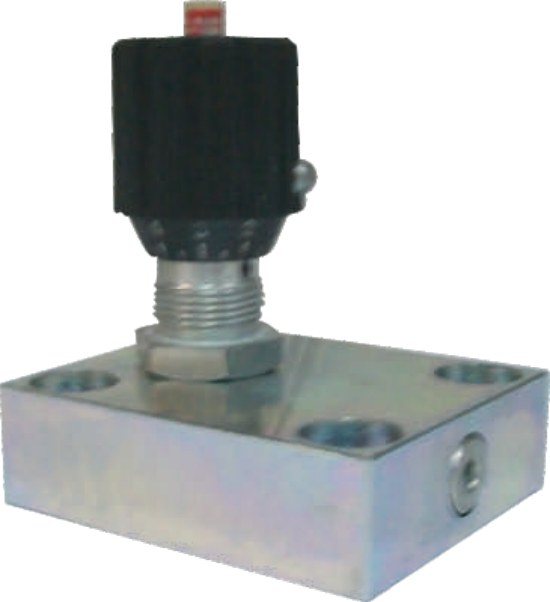

Manifold Mounted Flow Control Valve with Check Valve — DRVP
Manifold (sub-plate) mounted flow control valve with integrated check valve.
Western Hardware Mart, Kolkata supplies the Asian Hydraulic Manifold Mounted Flow Control Valve with Check Valve — DRVP as part of our flow control valves range. Available in 8 sizes or variants (weight 0.26–11 kg). Models: DRVP-06, DRVP-08, DRVP-10, DRVP-12, DRVP-16, DRVP-20, DRVP-25, DRVP-30. Specifications include pressure Up to 350 bar, flow Up to 300 l/min and nominal sizes 1/8" to 1-1/2". Message us on WhatsApp or call +91 98746 36636 for price and availability.
- PressureUp to 350 bar
- FlowUp to 300 l/min
- Nominal sizes1/8" to 1-1/2"
- MaterialCarbon steel
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Pressure
- Up to 350 bar
- Flow
- Up to 300 l/min
- Nominal sizes
- 1/8" to 1-1/2"
- Material
- Carbon steel
Sizes & variants
| Model | Nominal size | Weight (kg) |
|---|---|---|
| DRVP-06 | 1/8" | 0.26 |
| DRVP-08 | 1/4" | 0.50 |
| DRVP-10 | 3/8" | 0.80 |
| DRVP-12 | 1/2" | 1.10 |
| DRVP-16 | 3/4" | 2.50 |
| DRVP-20 | 1" | 3.90 |
| DRVP-25 | 1-1/4" | 6.70 |
| DRVP-30 | 1-1/2" | 11.0 |
Need a size that isn’t listed? Ask us — other configurations may be available on request.
Related products
Flow control valves

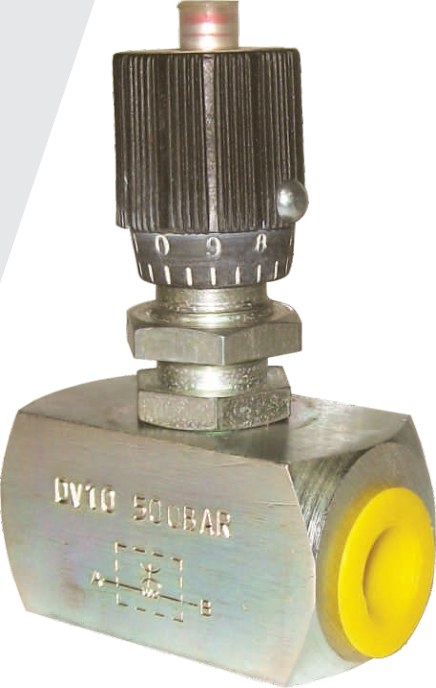

Flow Control Valve without Check Valve — DV (Inline Needle Valve)
DVInline carbon steel needle-type flow control valve without check valve; panel-mount kit available.
Flow control valves

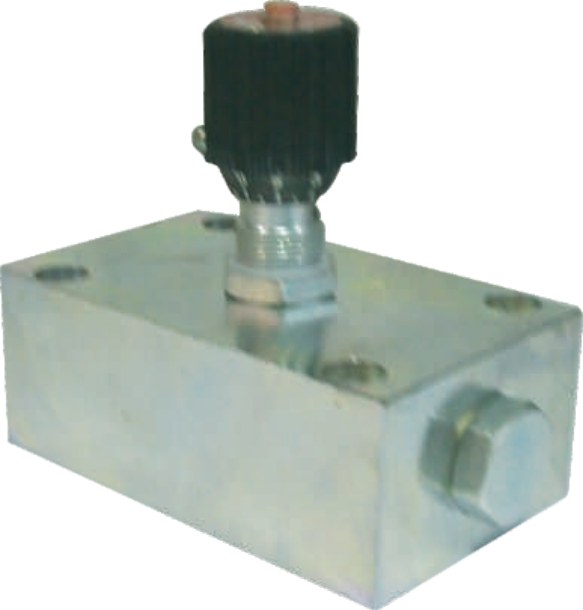

Manifold Mounted Flow Control Valve without Check Valve — DVP
DVPManifold mounted needle-type flow control valve; DVE cartridge version also available.
Flow control valves

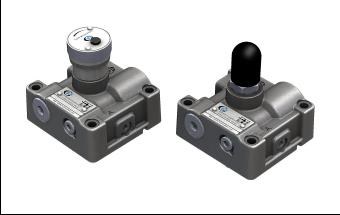

Pressure Compensated Flow Control Valve — 2PF*10
