Beam trolleys
Electric Trolley
ETSL SeriesMotorised electric trolley for traversing hoists along I-beams, 0.5 to 10 ton.

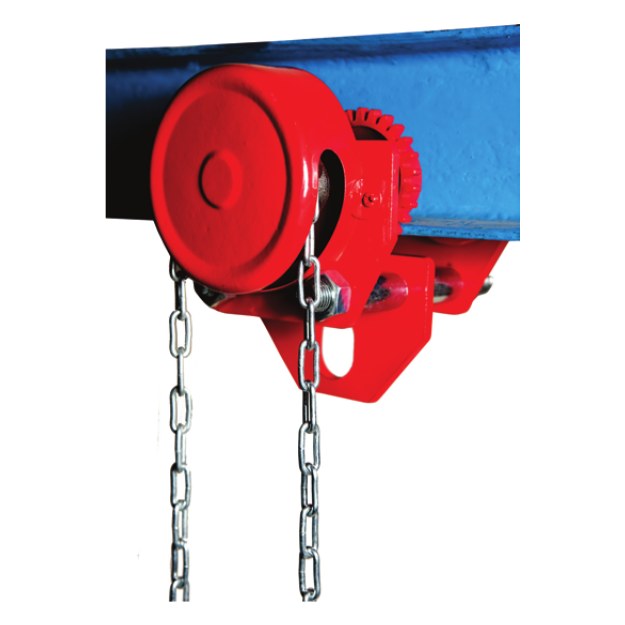

Geared Trolley
Hand-geared beam trolley for moving hoists along I-beams, adjustable to various rail widths.
Western Hardware Mart, Kolkata supplies the Geared Trolley (GTSL Series) as part of our beam trolleys range. Available in 6 sizes or variants (i-beam width 90–210 mm, net weight 10.3–63.5 kg). Part numbers: GTSL0103, GTSL0203, GTSL0303, GTSL0503, GTSL1003, GTSL2003. Specifications include capacity range 1 – 20 ton. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- Capacity range1 – 20 ton
- I-beam width range90 – 210 mm (by model)
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Capacity range
- 1 – 20 ton
- I-beam width range
- 90 – 210 mm (by model)
Sizes & variants
| Capacity | Item Code | I-Beam Width (mm) | Net Weight (kg) |
|---|---|---|---|
| 1 Ton | GTSL0103 | 90–120 | 10.3 |
| 2 Ton | GTSL0203 | 100–125 | 14.5 |
| 3 Ton | GTSL0303 | 110–160 | 21.3 |
| 5 Ton | GTSL0503 | 140–160 | 38.8 |
| 10 Ton | GTSL1003 | 140–210 | 63.5 |
| 20 Ton | GTSL2003 | 122–210 | – |
Need a size that isn’t listed? Ask us — other configurations may be available on request.
Related products
Chain & lever hoists

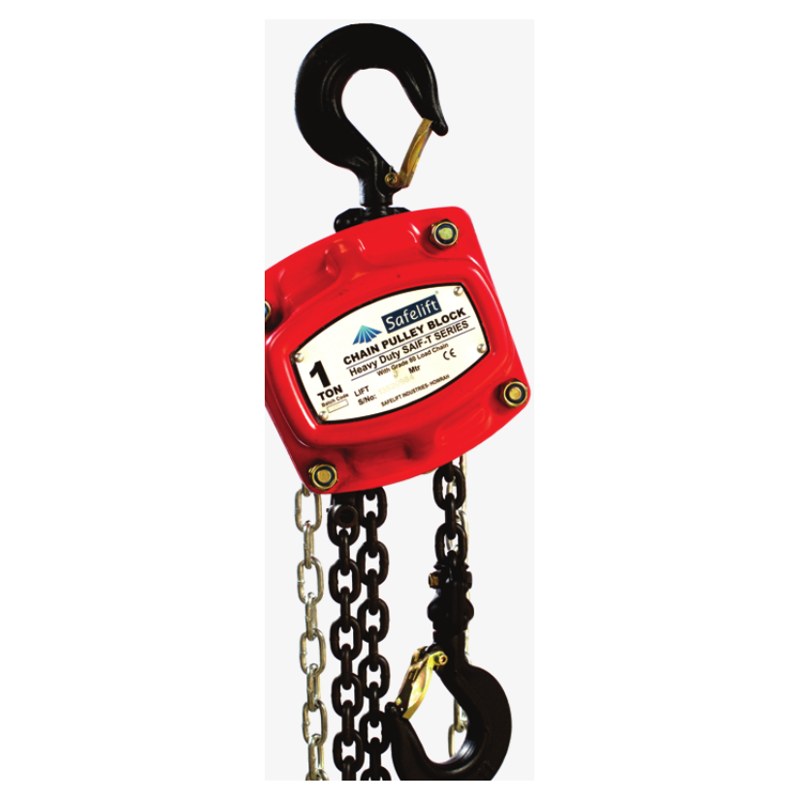

Heavy Duty Chain Pulley Block — T Series
T SeriesHeavy duty manual chain pulley block with Grade 80 alloy steel load chain, for general industrial lifting.
Chain & lever hoists

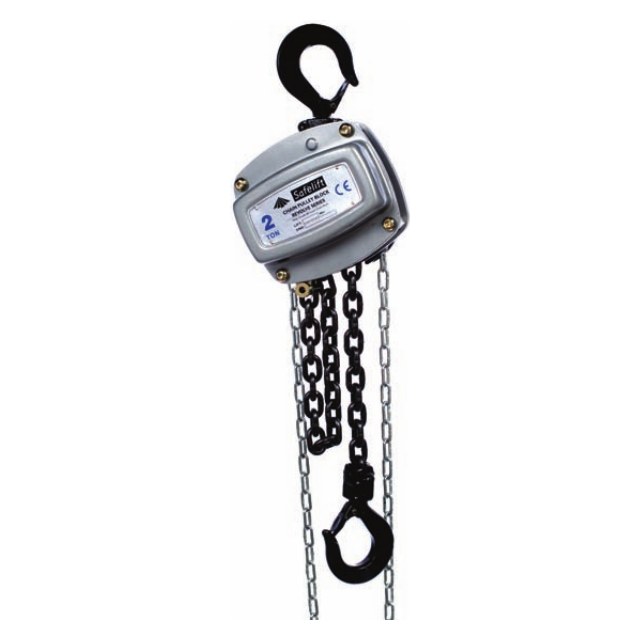

Chain Pulley Block — Revolve Series
Revolve SeriesHand chain hoist with a 360° rotating hand chain guide that lets the operator work from various angles and stay out of the danger zone.
Chain & lever hoists

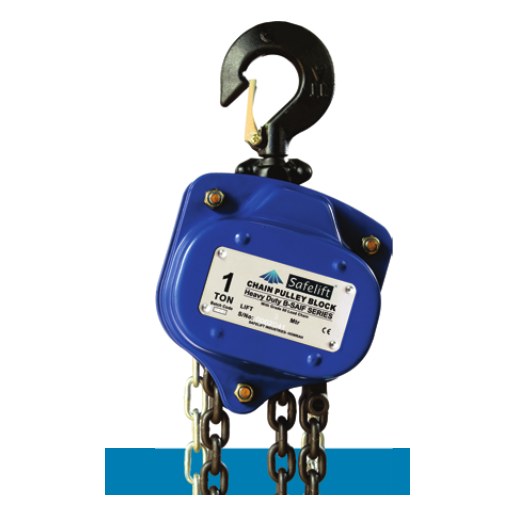

Chain Pulley Block — B Series
