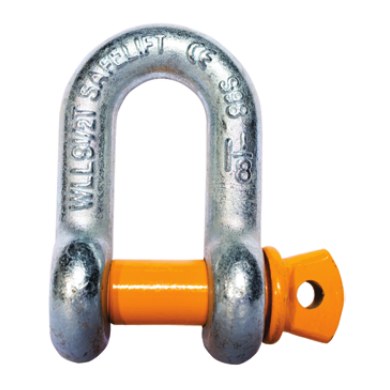

Screw Pin Dee Shackle
DSSL SeriesGalvanised, drop forged screw pin dee shackle, WLL 0.5 to 55 t.

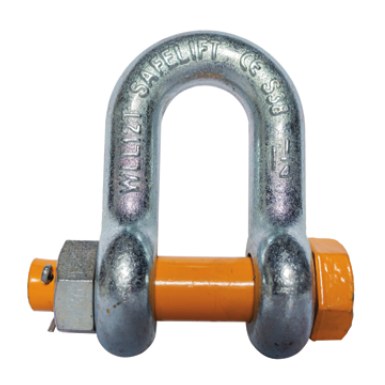

Nut Bolt Dee Shackle
Galvanised, drop forged bolt-type (nut, bolt and cotter pin) dee shackle, WLL 1 to 55 t.
Western Hardware Mart, Kolkata supplies the Nut Bolt Dee Shackle (DNSL Series) as part of our shackles range. Available in 13 sizes or variants (WLL 1–55 t, weight 0.13–35.09 kg). Part numbers: DNSL0801, DNSL0802, DNSL0803, DNSL0805, DNSL0806, DNSL0808, DNSL0810, DNSL0812, DNSL0813, DNSL0817 and 3 more. Specifications include finish Galvanised. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- WLL range1 – 55 t
- Size range3/8" – 2-1/2"
- FinishGalvanised
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- WLL range
- 1 – 55 t
- Size range
- 3/8" – 2-1/2"
- Finish
- Galvanised
Sizes & variants
| WLL (t) | Item Code | Size (in) | Weight (kg) |
|---|---|---|---|
| 1 | DNSL0801 | 3/8 | 0.13 |
| 2 | DNSL0802 | 1/2 | 0.27 |
| 3.25 | DNSL0803 | 5/8 | 0.64 |
| 4.75 | DNSL0805 | 3/4 | 0.96 |
| 6.5 | DNSL0806 | 7/8 | 1.56 |
| 8.5 | DNSL0808 | 1 | 2.2 |
| 9.5 | DNSL0810 | 1-1/8 | 3.24 |
| 12 | DNSL0812 | 1-1/4 | 4.34 |
| 13.5 | DNSL0813 | 1-3/8 | 6.05 |
| 17 | DNSL0817 | 1-1/2 | 7.77 |
| 25 | DNSL0825 | 1-3/4 | 13.1 |
| 35 | DNSL0835 | 2 | 19.07 |
| 55 | DNSL0855 | 2-1/2 | 35.09 |
Need a size that isn’t listed? Ask us — other configurations may be available on request.
Related products
Shackles

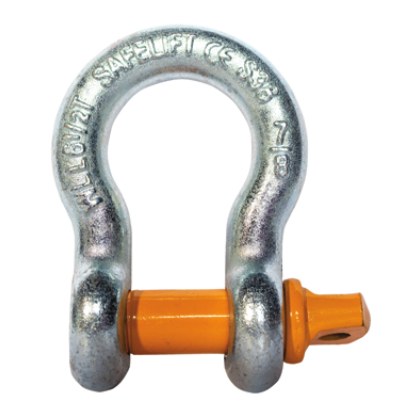

Screw Pin Bow Shackle
BSSL SeriesGalvanised, drop forged screw pin bow (anchor) shackle, WLL 1 to 55 t.
Shackles

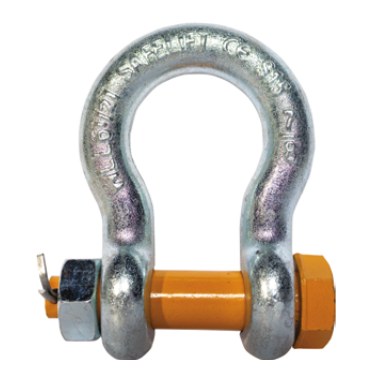

Nut Bolt Bow Shackle
BNSL SeriesGalvanised, drop forged bolt-type bow (anchor) shackle with nut and cotter pin, WLL 1 to 150 t.
Slings, lashing & protection

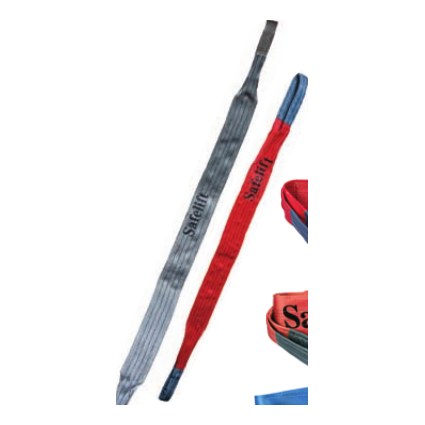

Polyester Duplex Webbing Sling
