Counterbalance & load holding valves
Counter Balance Valve — CBS20 (30 Series)
CBS20Direct acting seat type counter balance valve with free flow B → A and leak-free closure in the opposite direction.

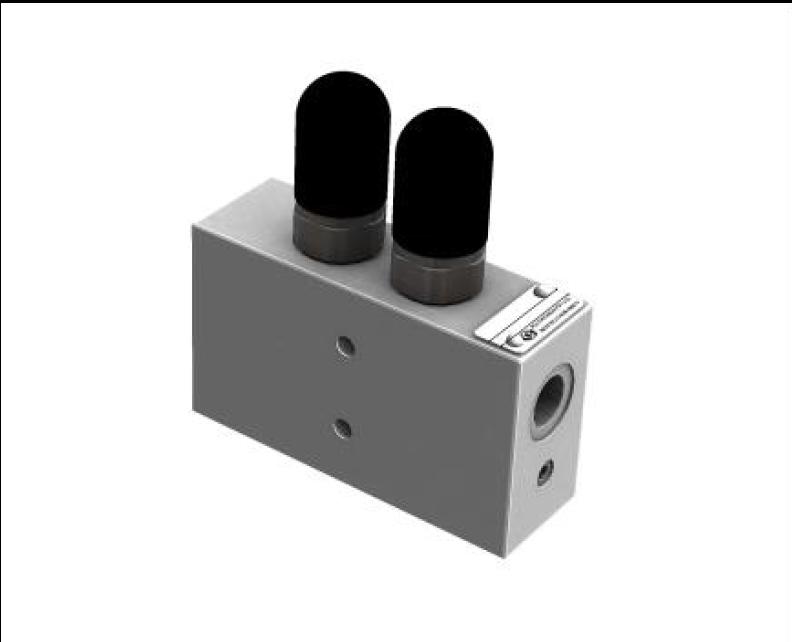

Dual Counter Balance Valve — 2CB06T03
Spool type, internally pilot operated dual counter balance valve for special-purpose applications.
Western Hardware Mart, Kolkata supplies the Polyhydron Dual Counter Balance Valve — 2CB06T03 as part of our counterbalance & load holding valves range. Specifications include construction Spool type, internally pilot operated, mounting Threaded port body, G 3/8 and working pressure 315 bar all ports. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- ConstructionSpool type, internally pilot operated
- MountingThreaded port body, G 3/8
- Working pressure315 bar all ports
- Check valve cracking pressure1 bar
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Construction
- Spool type, internally pilot operated
- Mounting
- Threaded port body, G 3/8
- Working pressure
- 315 bar all ports
- Check valve cracking pressure
- 1 bar
- Max. flow
- 30 l/min
- Mass
- 2.42 kg
- Hydraulic medium
- Mineral oil
- Temperature range
- -20 °C to +80 °C
