Counterbalance & load holding valves
Dual Counter Balance Valve — 2CB06T03
2CB06T03Spool type, internally pilot operated dual counter balance valve for special-purpose applications.

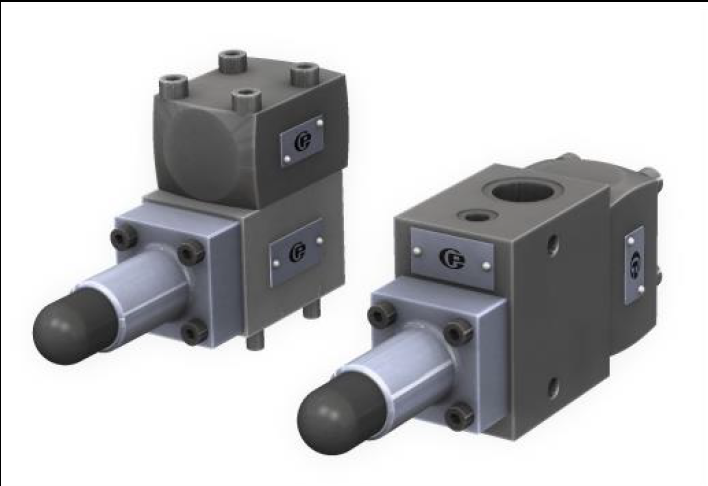

Counter Balance Valve — CBS20 (30 Series)
Direct acting seat type counter balance valve with free flow B → A and leak-free closure in the opposite direction.
Western Hardware Mart, Kolkata supplies the Polyhydron Counter Balance Valve — CBS20 (30 Series) as part of our counterbalance & load holding valves range. Specifications include construction Direct acting, seat type, mounting Threaded port body and subplate body and working pressure 315 bar all ports. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- ConstructionDirect acting, seat type
- MountingThreaded port body and subplate body
- Working pressure315 bar all ports
- Max. flow200 l/min
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Construction
- Direct acting, seat type
- Mounting
- Threaded port body and subplate body
- Working pressure
- 315 bar all ports
- Max. flow
- 200 l/min
- Mass
- CBS20T 8.6 kg / CBS20S 6.9 kg
- Hydraulic medium
- Mineral oil
- Temperature range
- -20 °C to +80 °C
