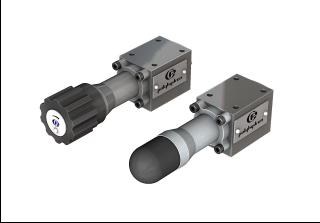

Direct Acting Pressure Reducing Valve — DPM06
Direct acting spool type pressure reducing valve, secondary (SA) or remote (SB) control.
Western Hardware Mart, Kolkata supplies the Polyhydron Direct Acting Pressure Reducing Valve — DPM06 (DPM 06S) as part of our pressure reducing valves range. Specifications include mounting Subplate, ISO 6403, pressure ratings 25, 50, 100 & 200 bar (primary up to 315 bar) and working pressure P: 315 bar; A & B: 200 bar; T: 60 bar. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- MountingSubplate, ISO 6403
- Pressure ratings25, 50, 100 & 200 bar (primary up to 315 bar)
- Working pressureP: 315 bar; A & B: 200 bar; T: 60 bar
- Mass1.54 kg
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Mounting
- Subplate, ISO 6403
- Pressure ratings
- 25, 50, 100 & 200 bar (primary up to 315 bar)
- Working pressure
- P: 315 bar; A & B: 200 bar; T: 60 bar
- Mass
- 1.54 kg
- Hydraulic medium
- Mineral oil
- Temperature range
- -20 °C to +80 °C
