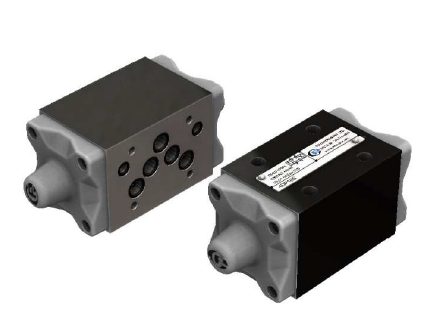

Pilot Operated Directional Control Valve — 4DP10
Pilot operated spool directional valve, 10 mm nominal port, standard 350 bar and high pressure 700 bar versions.
Western Hardware Mart, Kolkata supplies the Polyhydron Pilot Operated Directional Control Valve — 4DP10 as part of our pilot operated valves range. Specifications include interface ISO 4401-AC-05-4-A / IS 10187, max. pressure P, A, B: 350 bar (700 bar HP version); X, Y, T: 100 bar and min. pilot pressure 5 bar. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- InterfaceISO 4401-AC-05-4-A / IS 10187
- Max. pressureP, A, B: 350 bar (700 bar HP version); X, Y, T: 100 bar
- Min. pilot pressure5 bar
- Mass5 kg
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Interface
- ISO 4401-AC-05-4-A / IS 10187
- Max. pressure
- P, A, B: 350 bar (700 bar HP version); X, Y, T: 100 bar
- Min. pilot pressure
- 5 bar
- Mass
- 5 kg
- Hydraulic medium
- Mineral oil
- Viscosity range
- 10 cSt to 380 cSt
