Counterbalance & load holding valves
Dual Counter Balance Valve — 2CB06T03
2CB06T03Spool type, internally pilot operated dual counter balance valve for special-purpose applications.

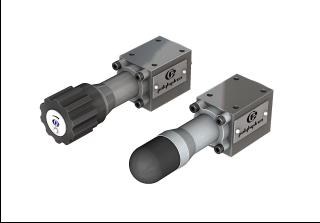

Direct Acting Pressure Sequence Valve — DPS06
Direct acting spool type pressure sequence valve, subplate mounted to ISO 6403.
Western Hardware Mart, Kolkata supplies the Polyhydron Direct Acting Pressure Sequence Valve — DPS06 (DPS 06S) as part of our sequence valves range. Specifications include mounting Subplate, ISO 6403, pressure ratings 25, 50, 100 & 200 bar (primary up to 315 bar) and working pressure P & B: 315 bar; T: 60 bar. Message us on WhatsApp or call +91 98746 36636 for price and availability.
- MountingSubplate, ISO 6403
- Pressure ratings25, 50, 100 & 200 bar (primary up to 315 bar)
- Working pressureP & B: 315 bar; T: 60 bar
- Mass1.54 kg
Enquire about this product
Send us the product details and we’ll reply with availability and pricing.
Specifications
- Mounting
- Subplate, ISO 6403
- Pressure ratings
- 25, 50, 100 & 200 bar (primary up to 315 bar)
- Working pressure
- P & B: 315 bar; T: 60 bar
- Mass
- 1.54 kg
- Hydraulic medium
- Mineral oil
- Temperature range
- -20 °C to +80 °C
